CLC011

Serial Digital Video Decoder

CLC011 Features

* Data decoding and deserializing CLC011B operates to 360Mbps CLC011A operates to 300Mbps Low noise injection to power supplies Single +5V or

* 5.2V supply operation Output levels programmable for interface to 5V or 3.3V logic n Low power n Low cost n n n n n n Block Diagram DS100086-1 © 199

CLC011 General Description

National’s Comlinear CLC011, Serial Digital Video Decoder, decodes and descrambles SMPTE 259M standard Serial Digital Video datastreams with serial clock into 10-bit parallel words and a corresponding word-rate clock. SMPTE 259M standard parallel data is encoded and scrambled using a 9-bit shift reg.

CLC011 Datasheet (1.07 MB)

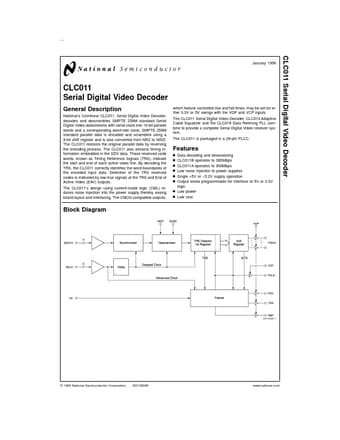

Preview of CLC011 PDF

Datasheet Details

Part number:

CLC011

Manufacturer:

National Semiconductor

File Size:

1.07 MB

Description:

Serial digital video decoder.
