CLC031

SMPTE 292M/259M Digital Video Deserializer / Descrambler

CLC031 Features

* a variabledepth FIFO which can be adjusted to delay the output data up to 4 parallel data clock periods. Ancilliary data may be selectively extracted from the parallel data through the use of masking and control bits in the configuration and control registers and stored in the on-chip FIFO. Reverse

CLC031 General Description

The CLC031 SMPTE 292M / 259M Digital Video Deserializer/Descrambler with Video and Ancilliary Data FIFOs is a monolithic integrated circuit that deserializes and decodes SMPTE 292M, 1.485Gbps (or 1.483Gbps) serial component video data, to 20-bit parallel data with a synchronized parallel word-rate c.

CLC031 Datasheet (416.44 KB)

Preview of CLC031 PDF

Datasheet Details

Part number:

CLC031

Manufacturer:

National Semiconductor

File Size:

416.44 KB

Description:

Smpte 292m/259m digital video deserializer / descrambler.

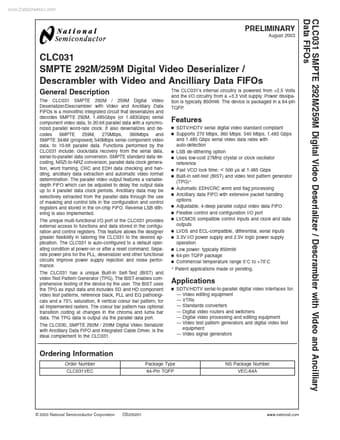

www.DataSheet4U.com CLC031 SMPTE 292M/259M Digital Video Deserializer / Descrambler with Video and Ancilliary Data FIFOs PRELIMINARY August 2003 CL.
