DAC1054

Quad 10-Bit Voltage-Output Serial D/A Converter

DAC1054 Features

* Y Single a5V supply operation Y MICROWIRE serial interface allows easy interface to many popular microcontrollers including the COPSTM and HPCTM families of microcontrollers Y Data readback capability Y Output data can be formatted to read back MSB or LSB first Y Versatile logic allows selective or

DAC1054 General Description

The DAC1054 is a complete quad 10-bit voltage-output digital-to-analog converter that can operate on a single 5V supply It includes on-chip output amplifiers internal voltage reference and serial microprocessor interface By combining in one package the reference amplifiers and conversion circuitry f.

DAC1054 Datasheet (250.38 KB)

Preview of DAC1054 PDF

Datasheet Details

Part number:

DAC1054

Manufacturer:

National Semiconductor

File Size:

250.38 KB

Description:

Quad 10-bit voltage-output serial d/a converter.

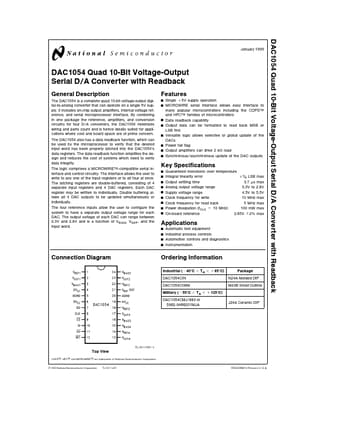

DAC1054 Quad 10-Bit Voltage-Output Serial D A Converter with Readback January 1995 DAC1054 Quad 10-Bit Voltage-Output Serial D A Converter with Read.
