DAC1218 - 12-Bit Binary Multiplying D/A Converter

Product Overview

National Semiconductor

Datasheet Details

Part number	DAC1218
Manufacturer	National Semiconductor
File Size	227.35 KB
Description	12-Bit Binary Multiplying D/A Converter
Datasheet	DAC1218 Datasheet

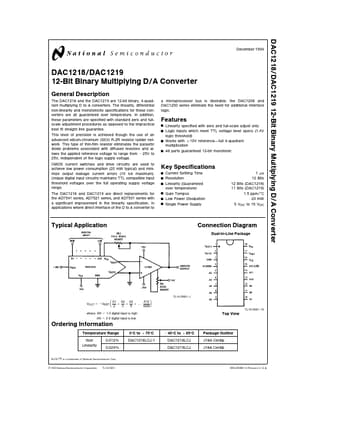

Additional preview pages of the DAC1218 datasheet.

Product details

Description

The DAC1218 and the DAC1219 are 12-bit binary 4-quadrant multiplying D to A converters The linearity differential non-linearity and monotonicity specifications for these converters are all guaranteed over temperature In addition these parameters are specified with standard zero and fullscale adjustment procedures as opposed to the impractical best fit straight line guarantee This level of precision is achieved though the use of an advanced silicon-chromium (SiCr) R-2R resistor ladder network Thi

Features

Y Y Y Y Linearity specified with zero and full-scale adjust only Logic inputs which meet TTL voltage level specs (1 4V logic threshold) Works with g 10V reference full 4-quadrant multiplication All parts guaranteed 12-bit monotonic Key Specifications Y Y Y Y Y Y Current Settling Time Resolution Linearity (Guaranteed over temperature) Gain Tempco Low Power Dissipation Single Power Supply 1 ms 12 Bits 12 Bits (DAC1218) 11 Bits (DAC1219) 1 5 ppm C 20 mW 5 VDC to 15 VDC Typical.
