DAC121S101Q - RRO Digital-to-Analog Converter

Product Overview

National Semiconductor

Datasheet Details

Part number	DAC121S101Q
Manufacturer	National Semiconductor
File Size	491.01 KB
Description	RRO Digital-to-Analog Converter
Datasheet	DAC121S101Q Datasheet

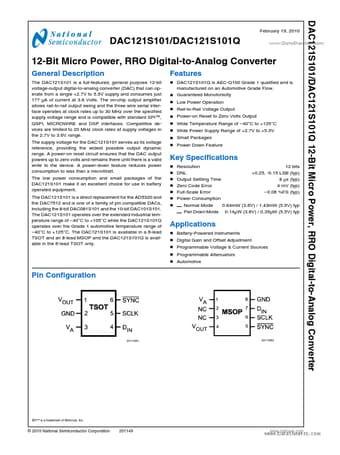

Additional preview pages of the DAC121S101Q datasheet.

Product details

Description

The DAC121S101 is a full-featured, general purpose 12-bit voltage-output digital-to-analog converter (DAC) that can operate from a single +2.7V to 5.5V supply and consumes just 177 µA of current at 3.6 Volts.

Features

DAC121S101Q is AEC-Q100 Grade 1 qualified and is.
manufactured on an Automotive Grade Flow. Guaranteed Monotonicity Low Power Operation Rail-to-Rail Voltage Output Power-on Reset to Zero Volts Output Wide Temperature Range of.
40°C to +125°C Wide Power Supply Range of +2.7V to +5.5V Small Packages Power Down Feature Key Specifications.
Resolution 12 bits DNL +0.25, -0.15 LSB (typ) Output Settli.
