DAC121C081

12-Bit Micro Power Digital-to-Analog Converter

Texas Instruments

DAC121C081 Features

* 1 Ensured Monotonicity to 12-Bits

* Low Power Operation: 156-µA Maximum at 3.3 V

* Extended Power Supply Range (2.7 V to 5.5 V)

* I2C-Compatible 2-Wire Interface Which Supports Standard (100-kHz), Fast (400-kHz), and HighSpeed (3.4-MHz) Modes

* Rail-to-Rail V

DAC121C081 General Description

The DAC121C081 is a 12-bit, single-channel, voltage-output digital-to-analog converter (DAC) that operates from a 2.7-V to 5.5-V supply. The output amplifier allows rail-to-rail output swing and has an 8.5-µs settling time. The DAC121C081 uses the supply voltage as the reference to provide the wides.

DAC121C081 Datasheet (1.84 MB)

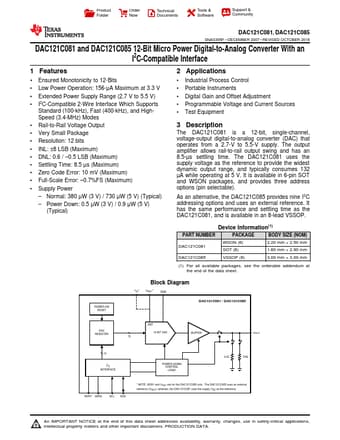

DAC121C081 Datasheet Preview — Preview of DAC121C081 PDF

Datasheet Details

Part number:

DAC121C081

Manufacturer:

Texas Instruments ↗

File Size:

1.84 MB

Description:

12-bit micro power digital-to-analog converter.
Product Folder Order Now Technical Documents Tools & Software Support & Community DAC121C081, DAC121C085 SNAS395F

* DECEMBER 2007
