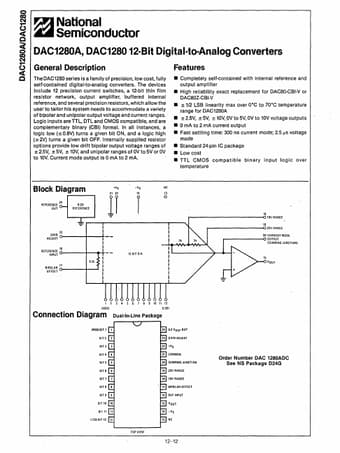

DAC1280A, DAC1280 - 12-Bit Digital-to-Analog Converters

National Semiconductor

Datasheet Details

Part number	DAC1280A, DAC1280
Manufacturer	National Semiconductor
File Size	386.77 KB
Description	12-Bit Digital-to-Analog Converters
Datasheet	DAC1280-NationalSemiconductor.pdf
Note	This datasheet PDF includes multiple part numbers: DAC1280A, DAC1280. Please refer to the document for exact specifications by model.

The DAC1280 series is a family of precision, low cost, fully self-contained digital-to-analog converters_ The devices include 12 precision current switches, a 12-bit thin film resistor network, output amplifier, buffered internal reference, and several precision resistors, which allow the user to tailor his system needs to accommodate a variety of bipolar and unipolar output voltage and current ranges_ . Logic inputs are TTL, DTL and OMOS compatible, and are complementary binary (CBI) format. I.
