DAC1282A, DAC1282 Low Distortion Digital-to-Analog Converter

DAC1282A Description

Product Folder Sample & Buy Technical Documents Tools & Software Support & Community DAC1282, DAC1282A SBAS490B * DECEMBER 2011 *.
The DAC1282 is a fully-integrated digital-to-analog converter (DAC) providing low distortion, digital synthesized voltage output suitable for testing.

DAC1282A Features

* 1 Single-Chip Test Signal Generator
* Buffered Voltage Output
* High Performance:
* THD:
* 125 dB (G = 1/1 to 1/8)
* SNR: 120 dB (413 Hz BW, G = 1/1)
* Analog and Digital Gain Control
* Output Frequency: 0.488 Hz to 250 Hz
* Sin

DAC1282A Applications

* Energy Exploration
* Seismic Monitoring Systems

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: DAC1282A, DAC1282. Please refer to the document for exact specifications by model.

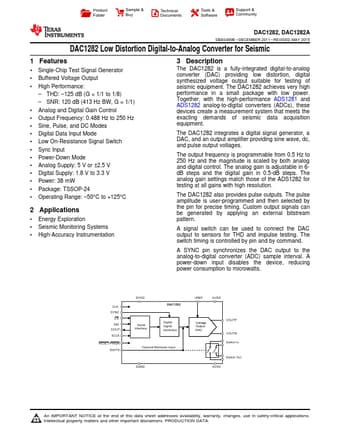

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
DAC1282A, DAC1282
Manufacturer
Texas Instruments ↗
File Size
1.48 MB
Datasheet
DAC1282-etcTI.pdf
Description
Low Distortion Digital-to-Analog Converter
Note
This datasheet PDF includes multiple part numbers: DAC1282A, DAC1282.
Please refer to the document for exact specifications by model.
