DH3725C - quad NPN core driver

Datasheet Summary

Description

typical characteristics The DH3725C consists of four 2N3725 type NPN transistors mounted in a 14-pin molded dual-in-line package_ The device is primarily intended for core memory application requiring operating currents in the ampere range, high stand-off voltage, and fast turn-on and turn-off tlm

National Semiconductor

📥 Download Datasheet

Datasheet Details

Part number	DH3725C
Manufacturer	National Semiconductor
File Size	90.05 KB
Description	quad NPN core driver
Datasheet	DH3725C Datasheet
Additional preview pages of the DH3725C datasheet.

📁 Similar Datasheet

DH321 - Green Mode Power Switch (ON Semiconductor)
DH3316 - Shielded Power Inductors (Coilcraft)

Other Datasheets by National Semiconductor

DH3467C - quad PNP core driver

Full PDF Text Transcription

Click to expand full text

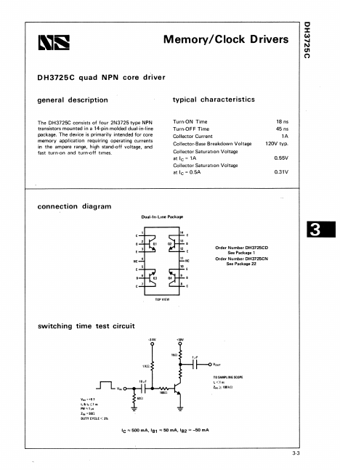

Memory/Clock Drivers w.:Q.x..:. N nUI DH3725C quad NPN core driver general description typical characteristics The DH3725C consists of four 2N3725 type NPN transistors mounted in a 14-pin molded dual-in-line package_ The device is primarily intended for core memory application requiring operating currents in the ampere range, high stand-off voltage, and fast turn-on and turn-off tlmes_ Turn-ON Time Turn-OFF Time Collector Current Collector-Base Breakdown Voltage Collector Saturation Voltage atle=lA Collector Saturation Voltage at Ie = 0_5A 18 ns 45 ns 1A 120V typo O.55V O.31V connection diagram Dual-In-Llne Package Order Number DH3725CD See Package 1 Ne Order Number DH3725CN See Package 22 TOP VIEW switching time test circuit -38V +30V 1pF IKn ~VOUT -D 10llF tV,O&N~~'"I7..
