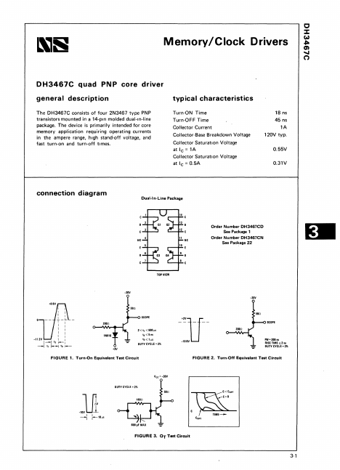

Memory/Clock Drivers
DH3467C quad PNP core driver
general description
typical characteristics
The DH3467C consists of four 2N3467 type PNP transistors mounted in a 14-pm molded dual-m-line package. The device is primarily intended for core memory application requiring operating currents in the ampere range, high stand-off voltage, and fast turn-on and turn-off times.
Turn-ON Time Turn-OFF Time Collector Current Collector-Base Breakdown Voltage
Collector Saturation Vbltage
at Ie = 1A
Collector Saturation Voltage at Ie = O.5A
18 ns 45 ns
1A 120V typo
O.55V
O.31V
connection diagram
Dual-I n-Line Package
Order Number DH3467CD See Package 1
Order Number DH3467CN NC See Package 22
TOP VIEW
-JOV
,gn
200.11
SCOPE
lNDI6
.,v
t3
