DM2504 Datasheet - National Semiconductor

Successive Approximation Registers

DM2504 Features

* Y Complete logic for successive approximation A D converters Y 8-bit and 12-bit registers Y Capable of short cycle or expanded operation Y Continuou

DM2504 General Description

The DM2502 DM2503 and DM2504 are 8-bit and 12-bit TTL registers designed for use in successive approximation A D converters These devices contain all the logic and control circuits necessary in combination with a D A converter to perform successive approximation analog-to-digital conversions The DM2.

DM2504 Datasheet (197.65 KB)

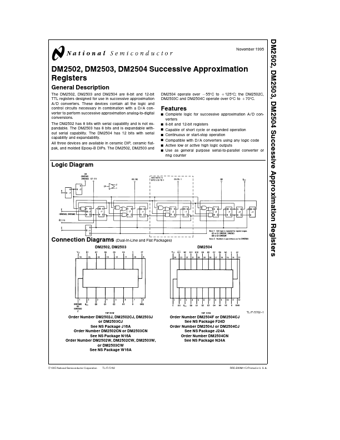

DM2504 Datasheet Preview — Preview of DM2504 PDF

Datasheet Details

Part number:

DM2504

Manufacturer:

National Semiconductor

File Size:

197.65 KB

Description:

Successive approximation registers.
