DM54L95 Datasheet - National Semiconductor

DM54L95, 4-Bit Parallel Access Shift Registers

DM54L95 4-Bit Parallel Access Shift Registers June 1989 DM54L95 4-Bit Parallel Access Shift Registers General .
These 4-bit registers feature parallel and serial inputs parallel output mode control and two clock inputs The registers have three modes of operation.

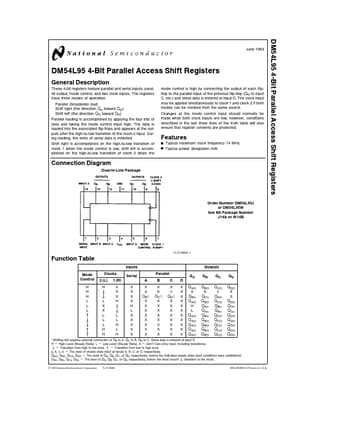

datasheet Preview Page 1 from Datasheet4u.com

DM54L95_NationalSemiconductor.pdf

DM54L95 Datasheet Preview — Preview of DM54L95 PDF

Datasheet Details

Part number:

DM54L95

Manufacturer:

National Semiconductor

File Size:

105.12 KB

Description:

4-Bit Parallel Access Shift Registers

Features

* Y Y Typical maximum clock frequency 14 MHz Typical power dissipation mW Connection Diagram Dual-In-Line Package Order Number DM54L95J or DM54L95W See NS Package Number J14A or W14B TL F 6638
* 1 Function Table Inputs Mode Control H H H L L L Clocks 2 (L) H 1 (R) X X X H X X X X H L X X
