DM54LS132

NAND Gates

DM54LS132 General Description

This device contains four independent gates each of which performs the logic NAND function Each input has hysteresis which increases the noise immunity and transforms a slowly changing input signal to a fast changing jitter free output Connection Diagram Dual-In-Line Package June 1989 TL F 6389 .

DM54LS132 Datasheet (127.66 KB)

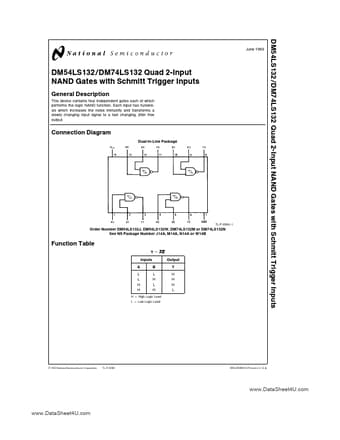

Preview of DM54LS132 PDF

Datasheet Details

Part number:

DM54LS132

Manufacturer:

National Semiconductor

File Size:

127.66 KB

Description:

Nand gates.
DM54LS132 DM74LS132 Quad 2-Input NAND Gates with Schmitt Trigger Inputs DM54LS132 DM74LS132 Quad 2-Input NAND Gates with Schmitt Trigger Inputs Gene.
