DM54LS139

Decoders/Demultiplexers

DM54LS139 Features

* Y Y Y Y Y Y Y Designed specifically for high speed Memory decoders Data transmission systems LS138 3-to-8-line decoders incorporates 3 enable inputs to simplify cascading and or data reception LS139 contains two fully independent 2-to-4-line decoders demultiplexers Schottky clamped for high pe

DM54LS139 General Description

These Schottky-clamped circuits are designed to be used in high-performance memory-decoding or data-routing applications requiring very short propagation delay times In high-performance memory systems these decoders can be used to minimize the effects of system decoding When used with high-speed mem.

DM54LS139 Datasheet (165.29 KB)

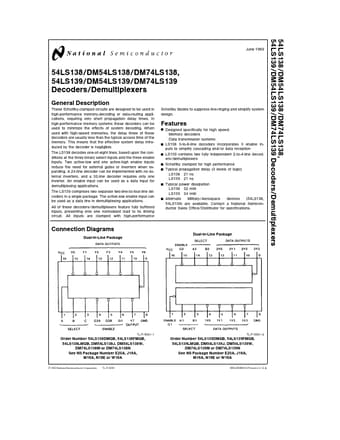

Preview of DM54LS139 PDF

Datasheet Details

Part number:

DM54LS139

Manufacturer:

National Semiconductor

File Size:

165.29 KB

Description:

Decoders/demultiplexers.
54LS138 DM54LS138 DM74LS138 54LS139 DM54LS139 DM74LS139 Decoders Demultiplexers June 1989 54LS138 DM54LS138 DM74LS138 54LS139 DM54LS139 DM74LS139 De.
