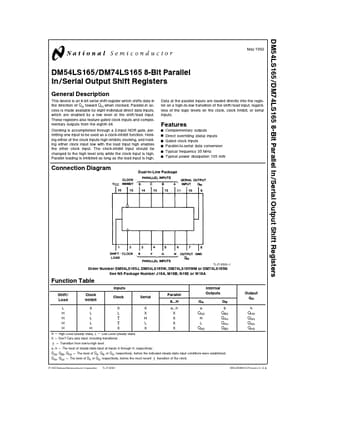

DM54LS165 Datasheet, Registers, National Semiconductor

DM54LS165 Features

• Registers Y Y Y Y Y Y Complementary outputs Direct overriding (data) inputs Gated clock inputs Parallel-to-serial data conversion Typical frequency 35 MHz Typical power dissipation 105 mW Conne

PDF File Details

Part number:

DM54LS165

Manufacturer:

National Semiconductor

File Size:

140.50kb

Download:

📄 Datasheet

Description:

8-bit parallel in/serial output shift registers. This device is an 8-bit serial shift register which shifts data in the direction of QA toward QH when clocked Parallel-in access is m
