DM54LS181 - 4-Bit Arithmetic Logic Unit

National Semiconductor

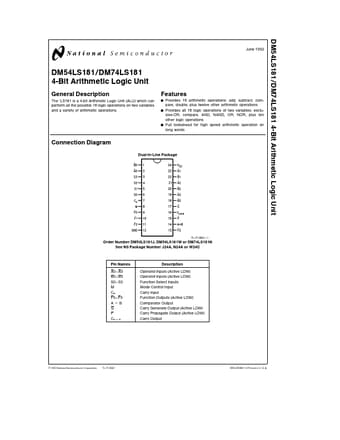

DM54LS181 Datasheet Preview — Preview of DM54LS181 PDF

Datasheet Details

Part number	DM54LS181
Manufacturer	National Semiconductor ↗
File Size	154.60 KB
Description	4-Bit Arithmetic Logic Unit
Datasheet	DM54LS181_NationalSemiconductor.pdf

DM54LS181 Product details

Description

The ’LS181 is a 4-bit Arithmetic Logic Unit (ALU) which can perform all the possible 16 logic operations on two variables and a variety of arithmetic operations

Features

Y Y Y Provides 16 arithmetic operations add subtract compare double plus twelve other arithmetic operations Provides all 16 logic operations of two variables exclusive-OR compare AND NAND OR NOR plus ten other logic operations Full lookahead for high speed arithmetic operation on long words Connection Diagram Dual-In-Line Package TL F 9821.
1 Order Number DM54LS181J DM54LS181W or DM74LS181N See NS Package Number J24A N24A or W24C Pin Names A0.
A3 B0.
B3 S0.
