DM54LS299 Datasheet, Pins, National Semiconductor

DM54LS299 Features

• Pins Y Y Y Y Common I O for reduced pin count Four operation modes shift left shift right load and store Separate shift right serial input and shift left serial input for easy cascading T

PDF File Details

Part number:

DM54LS299

Manufacturer:

National Semiconductor

File Size:

167.22kb

Download:

📄 Datasheet

Description:

8-input universal shift/storage register with common parallel i/o pins. The ’LS299 is an 8-bit universal shift storage register with TRI-STATE outputs Four modes of operation are possible hold (store) shif

DM54LS299 Application

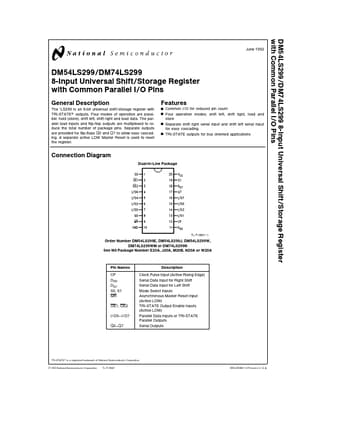

• Applications Connection Diagram Dual-In-Line Package TL F 9827
    – 1 Order Number DM54LS299E DM54LS299J DM54LS299W DM74LS299WM or D
