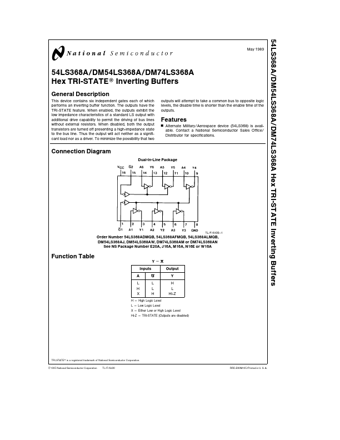

Description
This device contains six independent gates each of which performs an inverting buffer function The outputs have the TRI-STATE feature When enabled the outputs exhibit the low impedance characteristics of a standard LS output with additional drive capability to permit the driving of bus lines without external resistors When disabled both the output transistors are turned off presenting a high-impedance state to the bus line Thus the output will act neither as a significant load nor as a driver To
Features
- Y Alternate Military Aerospace device (54LS368) is available Contact a National Semiconductor Sales Office Distributor for specifications
Connection Diagram
Dual-In-Line Package
TL F 6430.
- 1
Order Number 54LS368ADMQB 54LS368AFMQB 54LS368ALMQB DM54LS368AJ DM54LS368AW DM74LS368AM or DM74LS368AN
See NS Package Number E20A J16A M16A N16E or W16A
Function Table
YeA
Inputs
Output
AG
Y
LL HL XH
H L Hi-Z
H e High Logic Level L e Low Logic Level X e Either Low or High Logic Level Hi-.
