DM54LS74A Datasheet - National Semiconductor

DM54LS74A Dual Positive-Edge-Triggered D Flip-Flops with Preset/ Clear and Complementary Outputs

This device contains two independent positive-edge-triggered D flip-flops with complementary outputs The information on the D input is accepted by the flip-flops on the positive going edge of the clock pulse The triggering occurs at a voltage level and is not directly related to the transition time .

DM54LS74A Features

* Y Alternate military aerospace device (54LS74) is available Contact a National Semiconductor Sales Office Distributor for specifications Connection Diagram Dual-In-Line Package TL F 6373

* 1 Order Number 54LS74DMQB 54LS74FMQB 54LS74LMQB DM54LS74AJ DM54LS74AW DM74LS74AM or DM74LS74AN See

DM54LS74A Datasheet (136.42 KB)

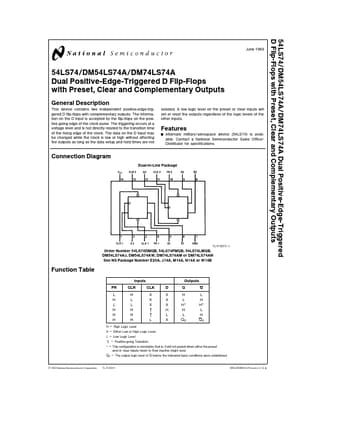

DM54LS74A Datasheet Preview — Preview of DM54LS74A PDF

Datasheet Details

Part number:

DM54LS74A

Manufacturer:

National Semiconductor

File Size:

136.42 KB

Description:

Dual positive-edge-triggered d flip-flops with preset/ clear and complementary outputs.
