DM74LS221

Dual Non-Retriggerable One-Shot

DM74LS221 Features

* Y A dual highly stable one-shot Y Compensated for VCC and temperature variations Y Pin-out identical to ’LS123 (Note 1) Y Output pulse width range from 30 ns to 70 seconds Y Hysteresis provided at (B) input for added noise immunity Y Direct reset terminates output pulse Y Triggerable from CLEAR inp

DM74LS221 General Description

The DM74LS221 is a dual monostable multivibrator with Schmitt-trigger input Each device has three inputs permitting the choice of either leading-edge or trailing-edge triggering Pin (A) is an active-low trigger transition input and pin (B) is an active-high transition Schmitt-trigger input that allo.

DM74LS221 Datasheet (130.10 KB)

Preview of DM74LS221 PDF

Datasheet Details

Part number:

DM74LS221

Manufacturer:

National Semiconductor

File Size:

130.10 KB

Description:

Dual non-retriggerable one-shot.

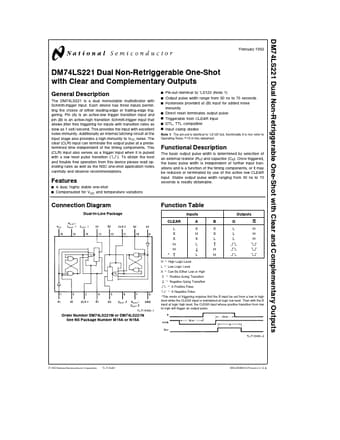

DM74LS221 Dual Non-Retriggerable One-Shot with Clear and Complementary Outputs February 1992 DM74LS221 Dual Non-Retriggerable One-Shot with Clear an.
