DM74LS465

(DM74LS465 - DM74LS468) TRI-STATE Octal Buffer

DM74LS465 Features

* Y Y Y Y Octal versions of popular DM74365 366 367 and 368 (DM8095 96 97 and 98) Typical power dissipation LS465 467 (LS95A 97A) 80 mW LS466 468 (LS96A 98A) 65 mW Typical propagation delay LS465 467 (LS95A 97A) 15 ns LS466 468 (LS96A 98A) 10 ns Low power-Schottky TRI-STATE technology Connection D

DM74LS465 General Description

These devices provide eight two-input buffers in each package All employ the newest low-power-Schottky TTL technology One of the two inputs to each buffer is used as a control line to gate the output into the high-impedance state while the other input passes the data through the buffer The ’LS465 an.

DM74LS465 Datasheet (118.10 KB)

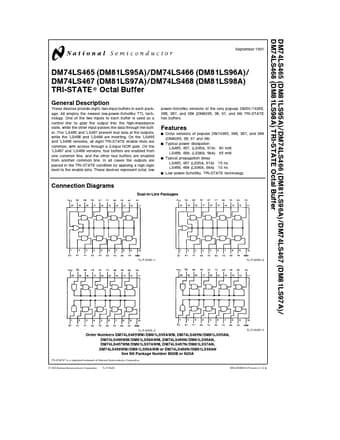

Preview of DM74LS465 PDF

Datasheet Details

Part number:

DM74LS465

Manufacturer:

National Semiconductor

File Size:

118.10 KB

Description:

(dm74ls465 - dm74ls468) tri-state octal buffer.
DM74LS465 (DM81LS95A) DM74LS466 (DM81LS96A) DM74LS467 (DM81LS97A) DM74LS468 (DM81LS98A) TRI-STATE Octal Buffer September 1991 DM74LS465 (DM81LS95A) .
