DM8861 MOS-to-LED 5-segment driver

DM8861 Description

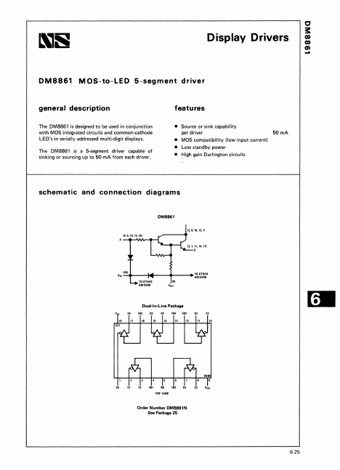

Display Drivers o ~ 00 e0..n.0.DM8861 MOS-to-LED 5-segment driver general .
The OM8861 is designed to be used in conjunction with MOS integrated circuits and common-cathode LED's in serially addressed mUlti-digit displays.

DM8861 Features

* Source or sink capability per driver 50 mA
* MOS compatibility (low input current)
* Low standby power
* High gain Darlington circuits schematic and connection diagrams DM8861 (4,6,12, 13.16) A -. -. y,f
