DS08MB200 Datasheet - National Semiconductor

Dual 800 Mbps 1:2/2:1 LVDS Mux/Buffer

DS08MB200 Features

* n Up to 800 Mbps data rate per channel n LVDS/BLVDS/CML/LVPECL compatible inputs, LVDS compatible outputs n Low output skew and jitter n On-chip 100Ω input termination n 15 kV ESD protection on LVDS Inputs/Outputs n Hot plug Protection n Single 3.3V supply n Industrial -40 to +85˚C temperature range

DS08MB200 General Description

The DS08MB200 is a dual-port 1 to 2 repeater/buffer and 2 to 1 multiplexer. High-speed data paths and flow-through pinout minimize internal device jitter and simplify board layout. The differential inputs and outputs interface to LVDS or Bus LVDS signals such as those on National’s 10-, 16-, and 18-.

DS08MB200 Datasheet (727.02 KB)

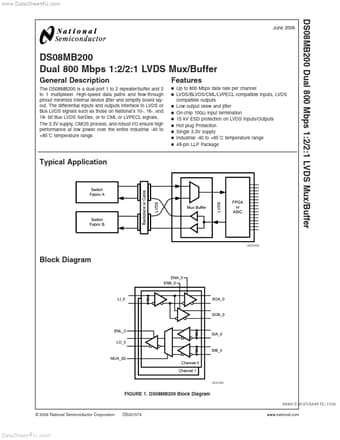

DS08MB200 Datasheet Preview — Preview of DS08MB200 PDF

Datasheet Details

Part number:

DS08MB200

Manufacturer:

National Semiconductor

File Size:

727.02 KB

Description:

Dual 800 mbps 1:2/2:1 lvds mux/buffer.
