DS0025C

Two Phase MOS Clock Driver

DS0025C Features

* Y 8-lead TO-5 or 8-lead or 14-lead dual-in-line package Y High Output Voltage Swings up to 25V Y High Output Current Drive Capability up to 1 5A Y Rep Rate 1 0 MHz into l 1000 pF Y Driven by DS8830 DM7440 Y ‘‘Zero’’ Quiescent Power Connection Diagrams Metal Can Package Dual-In-Line Package Note

DS0025C General Description

The DS0025C is a monolithic low cost two phase MOS clock driver that is designed to be driven by TTL line drivers or buffers such as the DS8830 or DM7440 Two input coupling capacitors are used to perform the level shift from TTL to MOS logic levels Optimum performance in turn-off delay and fall time.

DS0025C Datasheet (106.66 KB)

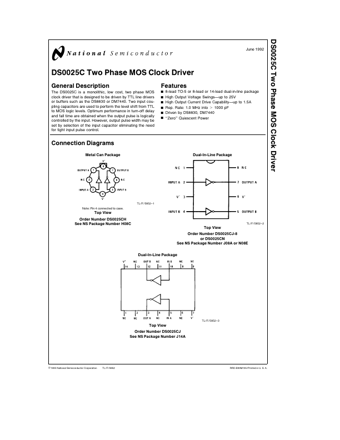

Preview of DS0025C PDF

Datasheet Details

Part number:

DS0025C

Manufacturer:

National Semiconductor

File Size:

106.66 KB

Description:

Two phase mos clock driver.
