DS001AKA

Single-Panel Liquid Crystal Optical Engine

DS001AKA Features

* The number of active dots: 768,000

* Horizontal resolution: 600 TV lines

* NTSC/NTSC-WIDE/HD (band: 20MHz) mode selectable (PAL/PAL-WIDE mode also available through conversion of scanned dot numbers by an external IC)

* Up/down and/or right/left inverse display func

DS001AKA General Description

The DS001AKA is a single-panel liquid crystal optical engine for use in rear projectors, capable of full-color displays without color filters (CF). This engine provides a wide aspect ratio of 16:9, such as those represented in HD. The side-black function also allows an aspect ratio of 4:3 in the NTS.

DS001AKA Datasheet (236.89 KB)

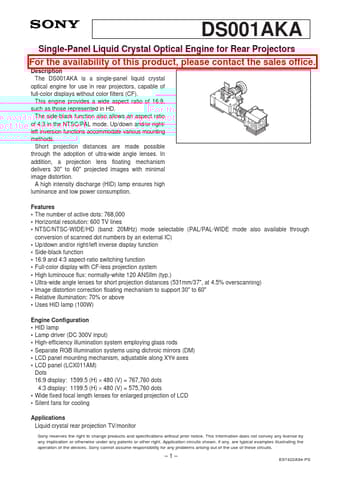

Preview of DS001AKA PDF

Datasheet Details

Part number:

DS001AKA

Manufacturer:

Sony

File Size:

236.89 KB

Description:

Single-panel liquid crystal optical engine.
DS001AKA Single-Panel Liquid Crystal Optical Engine for Rear Projectors For the availability of this product, please contact the sales office. Descrip.
