DS005AKC - Single-Panel Liquid Crystal Optical Engine

DS005AKC Description

DS005AKC Single-Panel Liquid Crystal Optical Engine for Rear Projectors .
The DS005AKC is a single-panel liquid crystal optical engine for use in rear projectors, and is capable of full-color displays without color filters (.

DS005AKC Features

* Number of active dots: 1,456,000
* Horizontal resolution: 600 TV lines
* Supports SVGA (804 × 3 × 604)/PC98∗ (804 × 3 × 500) mode display NTSC/NTSC-WIDE/PAL/PAL-WIDE modes also available through conversion of scanned dot numbers by an external IC
* Up/down and/or ri

DS005AKC Applications

* and allows clear graphic and character displays. Up/down and/or right/left inversion functions accommodate various mounting methods. Short projection distances are made possible through the adoption of an ultra-wide angle lens. In addition, a projection lens floating mechanism delivers 40 to 50 typ

📥 Download Datasheet

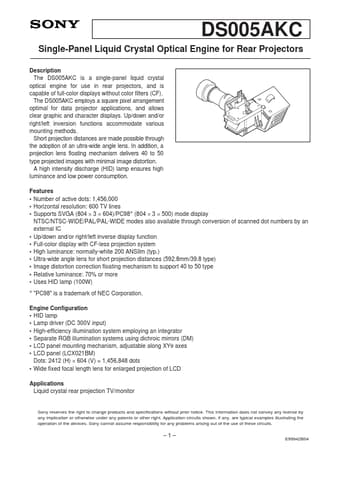

Preview of DS005AKC PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
DS005AKC
Manufacturer
Sony
File Size
343.01 KB
Datasheet
DS005AKC_Sony.pdf
Description
Single-Panel Liquid Crystal Optical Engine
