DS0025

Two Phase MOS Clock Driver

DS0025 Features

* .. 8

* lead TO

* 5 or 8

* lead dual

* in

* line package .. High Output Voltage Swings-up to 30V .. High Output Current Drive Capability-.up to 1.5A .. Rep. Rate: 1.0 MHz into> 1000 pF D Driven by DM932, DS8830, DM7440 (SN7440) .. "Zero" Quiescent Power Connection Diagrams Metal Can Packag

DS0025 General Description

The DS0025/DS0025C is monolithic, low cost, two phase MOS clock driver that is designed to be driven by TTL/DTL line drivers or buffers such as the DM932, DS8830 or DM7440. Two input coupling capacitors are used to perform the level shift from TTL/DTL to MOS logic levels. Optimum performance in turn.

DS0025 Datasheet (136.76 KB)

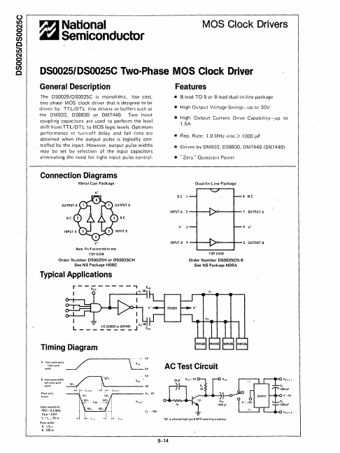

Preview of DS0025 PDF
