DS26F31M Quad High Speed Differential Line Drivers

The DS26F31 is a quad differential line driver designed for digital data transmission over balanced lines. The DS26F31 meets all the requirements of EIA Standard RS-422 and Federal Standard 1020. It is designed to provide unipolar differential drive to twisted-pair or parallel-wire transmission line.

DS26F31M Features

* lower power, extended temperature range, and improved specifications. The circuit provides an enable and disable function common to all four drivers. The DS26F31M features TRI-STATE ® outputs and logical OR-ed complementary enable inputs. The inputs are all LS compatible and are all one unit load. T

DS26F31M Datasheet (192.42 KB)

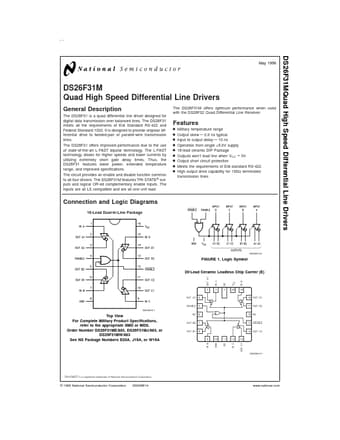

Preview of DS26F31M PDF
DS26F31M Datasheet Preview Page 2 DS26F31M Datasheet Preview Page 3

Datasheet Details

Part number:

DS26F31M

Manufacturer:

National Semiconductor

File Size:

192.42 KB

Description:

Quad high speed differential line drivers.
