DS26C31T Datasheet - National Semiconductor

CMOS Quad TRI-STATE Differential Line Driver

DS26C31T Features

* n n n n n n n n n n TTL input compatible Typical propagation delays: 6 ns Typical output skew: 0.5 ns Outputs will not load line when VCC = 0V DS26C31T meets the requirements of EIA standard RS-422 Operation from single 5V supply TRI-STATE outputs for connection to system buses Low quiescent current

DS26C31T General Description

The DS26C31 is a quad differential line driver designed for digital data transmission over balanced lines. The DS26C31T meets all the requirements of EIA standard RS-422 while retaining the low power characteristics of CMOS. The DS26C31M is compatible with EIA standard RS-422; however, one exception.

DS26C31T Datasheet (393.65 KB)

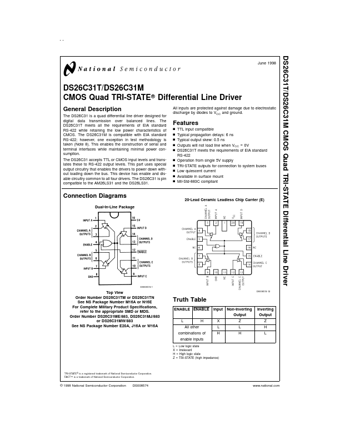

Preview of DS26C31T PDF

Datasheet Details

Part number:

DS26C31T

Manufacturer:

National Semiconductor

File Size:

393.65 KB

Description:

Cmos quad tri-state differential line driver.
DS26C31T/DS26C31M CMOS Quad TRI-STATE Differential Line Driver June 1998 DS26C31T/DS26C31M CMOS Quad TRI-STATE ® Differential Line Driver General De.
