DS26C32AT

Quad Differential Line Receiver

DS26C32AT Features

* internal pull-up and pull-down resistors which prevent output oscillation on unused channels. The DS26C32A provides an enable and disable function common to all four receivers, and features TRI-STATE ® outputs with 6 mA source and sink capability. This product is pin compatible with the DS26LS32A an

DS26C32AT General Description

The DS26C32A is a quad differential line receiver designed to meet the RS-422, RS-423, and Federal Standards 1020 and 1030 for balanced and unbalanced digital data transmission, while retaining the low power characteristics of CMOS. The DS26C32A has an input sensitivity of 200 mV over the common mod.

DS26C32AT Datasheet (311.31 KB)

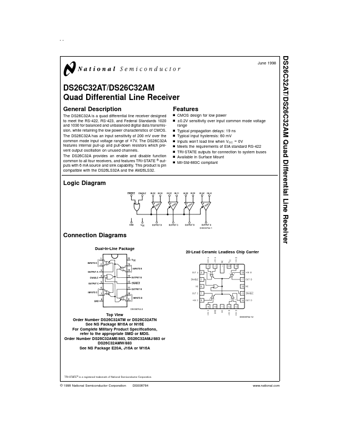

Preview of DS26C32AT PDF

Datasheet Details

Part number:

DS26C32AT

Manufacturer:

National Semiconductor

File Size:

311.31 KB

Description:

Quad differential line receiver.
