DS26F31MQML Datasheet - National Semiconductor

DS26F31MQML Quad High Speed Differential Line Drivers

The DS26F31M is a quad differential line driver designed for digital data transmission over balanced lines. The DS26F31M meets all the requirements of EIA Standard RS422 and Federal Standard 1020. It is designed to provide unipolar differential drive to twisted-pair or parallel-wire transmission lin.

DS26F31MQML Features

* lower power, extended temperature range, and improved specifications. The circuit provides an enable and disable function common to all four drivers. The DS26F31M features TRI-STATE ® outputs and logical OR-ed complementary enable inputs. The inputs are all LS compatible and are all one unit load. T

DS26F31MQML_NationalSemiconductor.pdf

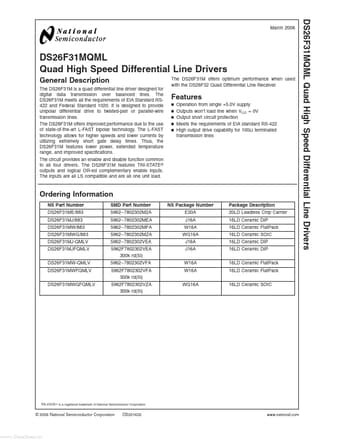

Preview of DS26F31MQML PDF
DS26F31MQML Datasheet Preview Page 2 DS26F31MQML Datasheet Preview Page 3

Datasheet Details

Part number:

DS26F31MQML

Manufacturer:

National Semiconductor

File Size:

670.01 KB

Description:

Quad high speed differential line drivers.
