DS32EV100 - Programmable Single Equalizer

The DS32EV100 programmable equalizer provides compensation for transmission medium losses and reduces the medium-induced deterministic jitter for NRZ data channel.

The DS32EV100 is optimized for operation up to 3.2 Gbps for both cables and FR4 traces.

The equalizer channel has eight levels of input

DS32EV100 Features

* Equalizes up to 14 dB loss at 3.2 Gbps 8 levels of programmable equalization Operates up to 3.2 Gbps with 40” FR4 traces 0.12 UI residual deterministic jitter at 3.2 Gbps with 40” FR4 traces Single 2.5V or 3.3V power supply Supports AC or D

DS32EV100_NationalSemiconductor.pdf

Preview of DS32EV100 PDF

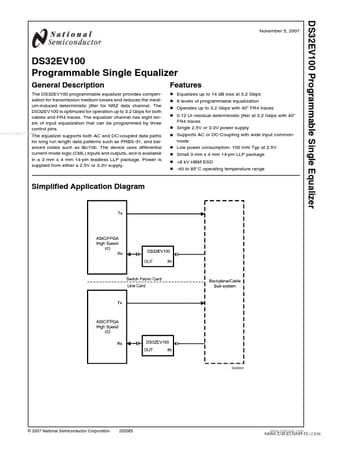

DS32EV100 Datasheet Preview Page 2 DS32EV100 Datasheet Preview Page 3

Datasheet Details

Part number:

DS32EV100

Manufacturer:

National Semiconductor

File Size:

672.32 KB

Description:

Programmable single equalizer.
