DS3648 - TRI-STATE TTL to MOS Multiplexers/Drivers

Description

The DS1648 DS3648 and DS1678 DS3678 are quad 2-input multiplexers with TRI-STATE outputs designed to drive the large capacitive loads (up to 500 pF) associated with MOS memory systems A PNP input structure is employed to minimize input currents so that driver loading in large memory systems is reduc

Features

  • Y Y Y Y Y Y TRI-STATE outputs interface directly with system-bus Schottky-clamped for better ac performance PNP inputs to minimize input loading TTL compatible High-speed capacitive load drivers Built-in damping resistor (DS1648 DS3648 only) Logic and Connection Diagrams Dual-In-Line Package TL F 7506.
  • 2 Top View TL F 7506.
  • 1 Order Number DS1648J DS3648J DS1678J DS3678J DS3648N or DS3678N See NS Package Number J16A or N16A TRI-STATE is a registered trademark of National S.

📥 Download Datasheet

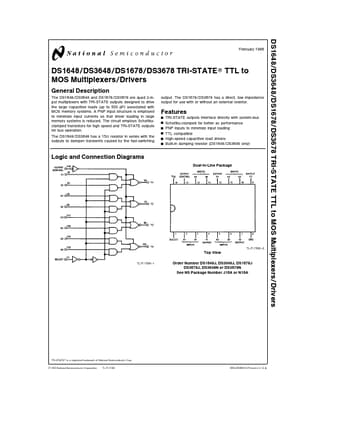

Datasheet preview – DS3648

📁 Similar Datasheet

  • DS3647A - Quad Tri-state MOS Memory I/o Register (National Semiconductor Corporation)
  • DS36277 - Dominant Mode Multipoint Transceiver (Texas Instruments)
  • DS3630-945GSE - Mini ITX Main Board Manual (Advansus)
  • DS3658 - Quad High Current Peripheral Driver (Texas Instruments)
  • DS3667 - 3 State Bidirectional Transceiver (National)
  • DS3680 - QUAD TELEPHONE RELAY DRIVER (Texas Instruments)
  • DS3690 - Three-Stateable Transmission Gate (Maxim Integrated Products)
  • DS36950 - Quad Differential Bus Transceiver (Texas Instruments)
  • DS36954 - Quad Differential Bus Transceiver (Texas Instruments)
  • DS3695A - Multipoint RS485/RS422 Transceivers (Texas Instruments)
Other Datasheets by National Semiconductor
  • DS3649 - Hex TRI-STATE TTLto MOS Drivers
  • DS36149 - (DS36149 / DS36179) Hex MOS Drivers
  • DS36179 - (DS36149 / DS36179) Hex MOS Drivers
  • DS36276 - FAILSAFE Multipoint Transceiver
  • DS36277 - Dominant Mode Multipoint Transceiver
  • DS3628 - Octal TRI-STATE MOS Drivers
  • DS3630B - Hex CMOS Compatible Buffer
  • DS3631 - CMOS Dual Peripheral Drivers

Full PDF Text Transcription

Click to expand full text
DS1648 DS3648 DS1678 DS3678 TRI-STATE TTL to MOS Multiplexers Drivers February 1986 DS1648 DS3648 DS1678 DS3678 TRI-STATE TTL to MOS Multiplexers Drivers General Description The DS1648 DS3648 and DS1678 DS3678 are quad 2-input multiplexers with TRI-STATE outputs designed to drive the large capacitive loads (up to 500 pF) associated with MOS memory systems A PNP input structure is employed to minimize input currents so that driver loading in large memory systems is reduced The circuit employs Schottkyclamped transistors for high speed and TRI-STATE outputs for bus operation The DS1648 DS3648 has a 15X resistor in series with the outputs to dampen transients caused by the fast-switching output The DS1678 DS3678 has a direct low impedance output for use with or without an external resistor
