DS75161A

IEEE-488 GPIB Transceivers

DS75161A Features

* n 8-channel bi-directional non-inverting transceivers n Bi-directional control implemented with TRI-STATE ® output design n Meets IEEE Standard 488-1978 n High-speed Schottky design n Low power consumption n High impedance PNP inputs (drivers) n 500 mV (typ) input hysteresis (receivers) n On-chip bu

DS75161A General Description

This family of high-speed-Schottky 8-channel bi-directional transceivers is designed to interface TTL/MOS logic to the IEEE Standard 488-1978 General Purpose Interface Bus (GPIB). PNP inputs are used at all driver inputs for minimum loading, and hysteresis is provided at all receiver inputs for adde.

DS75161A Datasheet (209.53 KB)

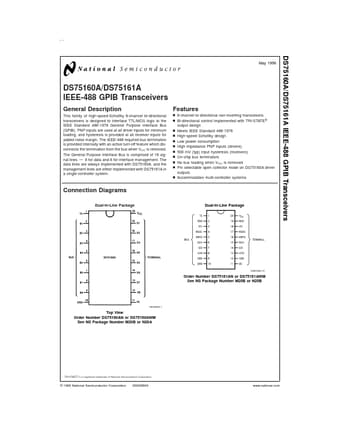

Preview of DS75161A PDF

Datasheet Details

Part number:

DS75161A

Manufacturer:

National Semiconductor

File Size:

209.53 KB

Description:

Ieee-488 gpib transceivers.
