DS75162A

IEEE-488 GPIB Transceivers

National Semiconductor

DS75162A Features

* Y 8-channel bi-directional non-inverting transceivers Y Bi-directional control implemented with TRI-STATE output design Y Meets IEEE Standard 488-1978 Y High-speed Schottky design Y Low power consumption Y High impedance PNP inputs (drivers) Y 500 mV (typ) input hysteresis (receivers) Y On-chip bus

DS75162A General Description

This family of high-speed-Schottky 8-channel bi-directional transceivers is designed to interface TTL MOS logic to the IEEE Standard 488-1978 General Purpose Interface Bus (GPIB) PNP inputs are used at all driver inputs for minimum loading and hysteresis is provided at all receiver inputs for added .

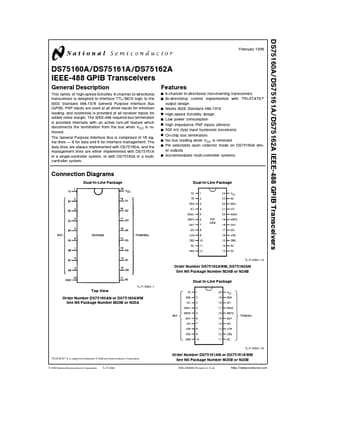

DS75162A Datasheet (165.44 KB)

DS75162A Datasheet Preview — Preview of DS75162A PDF

Datasheet Details

Part number:

DS75162A

Manufacturer:

National Semiconductor

File Size:

165.44 KB

Description:

Ieee-488 gpib transceivers.
