DS8837

Hex Unified Bus Receiver

DS8837 Features

* Y Y Y Y Y Y Y Y Low receiver input current for normal VCC or VCC e 0V (15 mA typ) Six separate receivers per package Built-in receiver input hysteresis (1V typ) High receiver noise immunity (2V typ) Temperature insensitive receiver input thresholds track bus logic levels TTL compatible disable and

DS8837 General Description

The DS7837 DS8837 are high speed receivers designed for use in bus organized data transmission systems interconnected by terminated 120X impedance lines The external termination is intended to be 180X resistor from the bus to the a 5V logic supply together with a 390X resistor from the bus to ground.

DS8837 Datasheet (107.28 KB)

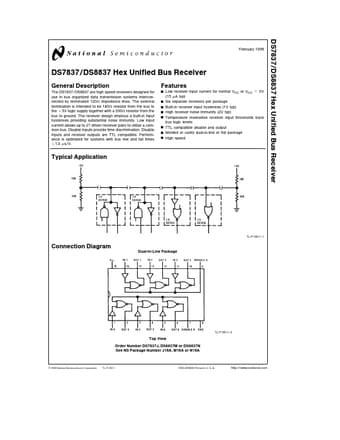

Preview of DS8837 PDF

Datasheet Details

Part number:

DS8837

Manufacturer:

National Semiconductor

File Size:

107.28 KB

Description:

Hex unified bus receiver.
