DS8921

Differential Line Driver and Receiver Pair

DS8921 Features

* n n n n n 12 ns typical propagation delay Output skew - 0.5 ns typical Meet the requirements of EIA Standard RS-422 Complementary Driver Outputs High differential or common-mode input voltage ranges of ± 7V n ± 0.2V receiver sensitivity over the input voltage range n Receiver input hysteresis-70 mV

DS8921 General Description

The DS8921, DS8921A are Differential Line Driver and Receiver pairs designed specifically for applications meeting the ST506, ST412 and ESDI Disk Drive Standards. In addition, these devices meet the requirements of the EIA Standard RS-422. The DS8921, DS8921A receivers offer an input sensitivity of .

DS8921 Datasheet (244.51 KB)

Preview of DS8921 PDF

Datasheet Details

Part number:

DS8921

Manufacturer:

National Semiconductor

File Size:

244.51 KB

Description:

Differential line driver and receiver pair.

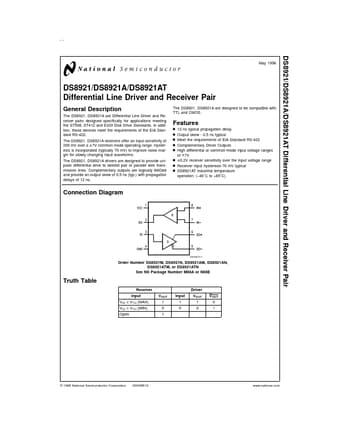

DS8921/DS8921A/DS8921AT Differential Line Driver and Receiver Pair May 1998 DS8921/DS8921A/DS8921AT Differential Line Driver and Receiver Pair Gener.
