DS8925

LocalTalk Dual Driver/Triple Receiver

National Semiconductor

DS8925 Features

* n n n n n n Single chip solution for LocalTalk port Two driver/three receivers per package Wide common mode range: ± 10V ± 200 mV receiver sensitivity 70 mV typical receiver input hysteresis Available in SOIC packaging Connection Diagram Dual-In-Line Package Functional Diagram DS011895-1 Order N

DS8925 General Description

The DS8925 is a dual driver/triple receiver device optimized to provide a single chip solution for a LocalTalk Interface. The device provides one differential TIA/EIA-422 driver, one TIA/EIA-423 single ended driver, one TIA/EIA-422 receiver and two TIA/EIA-423 receivers, all in a surface mount 16 pi.

DS8925 Datasheet (311.86 KB)

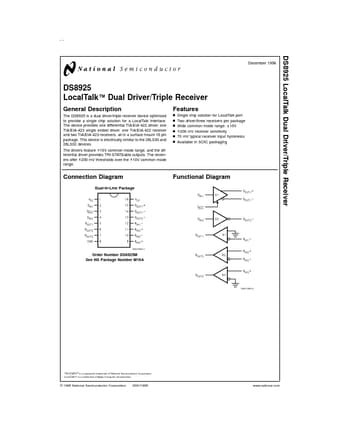

DS8925 Datasheet Preview — Preview of DS8925 PDF

Datasheet Details

Part number:

DS8925

Manufacturer:

National Semiconductor

File Size:

311.86 KB

Description:

Localtalk dual driver/triple receiver.
