DS8923A - RS-422 Dual Differential Line Driver and Receiver Pairs

This page provides the datasheet information for the DS8923A, a member of the DS8922A RS-422 Dual Differential Line Driver and Receiver Pairs family.

Datasheet Summary

Description

The DS8922/22A and DS8923A are Dual Differential Line Driver and Receiver pairs.

These devices are designed specifically for applications meeting the ST506, ST412 and ESDI Disk Drive Standards.

In addition, the devices meet the requirements of the EIA Standard RS-422.

📥 Download Datasheet

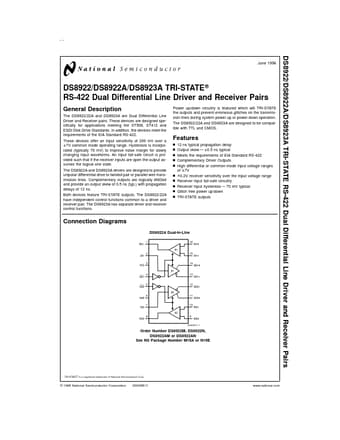

Datasheet preview – DS8923A

Datasheet Details

Part number DS8923A
Manufacturer National Semiconductor
File Size 478.54 KB
Description RS-422 Dual Differential Line Driver and Receiver Pairs
Datasheet download datasheet DS8923A Datasheet
Additional preview pages of the DS8923A datasheet.

📁 Similar Datasheet

  • DS8924 - Quad Tri-State Differential Line Driver (National)
  • DS89C21 - DS89C21 Differential CMOS Line Driver and Receiver Pair (Rev. C) (ETCTI)
  • DS89C420 - Ultra-High-Speed Microcontroller (Dallas Semiconducotr)
  • DS89C430 - Ultra-High-Speed Flash Microcontrollers (Maxim Integrated)
  • DS89C440 - Ultra-High-Speed Flash Microcontrollers (Dallas Semiconducotr)
  • DS89C450 - Ultra-High-Speed Flash Microcontrollers (Maxim Integrated)
  • DS8005 - Smart Card Interface (Maxim Integrated Products)
  • DS8007 - multiprotocol dual smart card interface (Maxim Integrated Products)
  • DS8007A - Multiprotocol Dual Smart Card Interface (Maxim Integrated Products)
  • DS8023 - Smart Card Interface (Maxim Integrated Products)
Other Datasheets by National Semiconductor
  • DS8921 - Differential Line Driver and Receiver Pair
  • DS8921A - Differential Line Driver and Receiver Pair
  • DS8921AT - Differential Line Driver and Receiver Pair
  • DS8922 - TRI-STATE RS-422 Dual Differential Line Driver and Receiver Pairs
  • DS8922A - RS-422 Dual Differential Line Driver and Receiver Pairs
  • DS8925 - LocalTalk Dual Driver/Triple Receiver
  • DS8907 - Phase-Locked Loop Frequency Synthesizer
  • DS8911 - Sound Up-Conversion Frequency Synthesizer

Full PDF Text Transcription

Click to expand full text
DS8922/DS8922A/DS8923A TRI-STATE RS-422 Dual Differential Line Driver and Receiver Pairs June 1998 DS8922/DS8922A/DS8923A TRI-STATE® RS-422 Dual Differential Line Driver and Receiver Pairs General Description The DS8922/22A and DS8923A are Dual Differential Line Driver and Receiver pairs. These devices are designed specifically for applications meeting the ST506, ST412 and ESDI Disk Drive Standards. In addition, the devices meet the requirements of the EIA Standard RS-422. These devices offer an input sensitivity of 200 mV over a ±7V common mode operating range. Hysteresis is incorporated (typically 70 mV) to improve noise margin for slowly changing input waveforms. An input fail-safe circuit is provided such that if the receiver inputs are open the output assumes the logical one state.
