DS90UR905Q, 5 - 65 MHz 24-bit Color FPD-Link Serializer/Deserializer

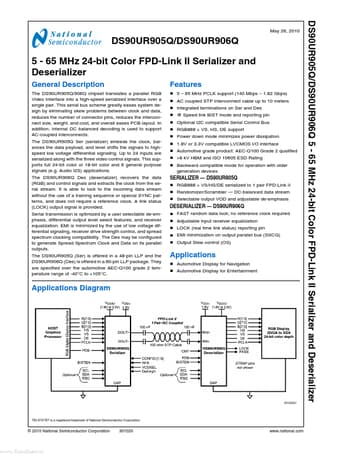

DS90UR905Q/DS90UR906Q 5 - 65 MHz 24-bit Color FPD-Link II Serializer and Deserializer May 26, 2010 DS90UR905Q/DS90UR906Q 5 - 65 MHz 24-bit Color FPD.
The DS90UR905Q/906Q chipset translates a parallel RGB Video Interface into a high-speed serialized interface over a single pair.

datasheet Preview Page 1 from Datasheet4u.com

DS90UR905Q_NationalSemiconductor.pdf

DS90UR905Q Datasheet Preview — Preview of DS90UR905Q PDF

Datasheet Details

Part number:

DS90UR905Q

Manufacturer:

National Semiconductor

File Size:

1.19 MB

Description:

5 - 65 MHz 24-bit Color FPD-Link Serializer/Deserializer

Features

* and receiver equalization. EMI is minimized by the use of low voltage differential signaling, receiver drive strength control, and spread spectrum clocking compatibility. The Des may be configured to generate Spread Spectrum Clock and Data on its parallel outputs. The DS90UR905Q (Ser) is offered in

Applications

* The DS90UR906Q Des (deserializer) recovers the data (RGB) and control signals and extracts the clock from the serial stream. It is able to lock to the incoming data stream without the use of a training sequence or special SYNC patterns, and does not require a reference clock. A link status (LOCK) o
