DS90UR241, DS90UR124 Datasheet - National Semiconductor

DS90UR241 DC-Balanced 24-Bit LVDS Serializer/Deserializer

The DS90UR241/124 Chipset translates a 24-bit parallel bus into a fully transparent data/control LVDS serial stream with embedded clock information. This single serial stream simplifies transferring a 24-bit bus over PCB traces and cable by eliminating the skew problems between parallel data and clo.

DS90UR241 Features

* pre-emphasis to boost signals over longer distances using lossy cables. Internal DC balanced encoding/decoding is used to support AC-Coupled interconnects. Using National Semiconductor’s proprietary random lock, the Serializer’s parallel data are randomized to the Deserializer without the need of RE

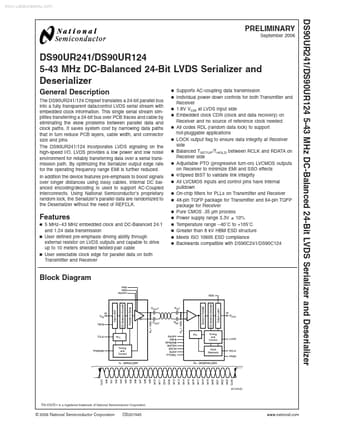

DS90UR124_NationalSemiconductor.pdf

DS90UR241 Datasheet Preview — This datasheet PDF includes multiple part numbers: DS90UR241, DS90UR124. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

DS90UR241, DS90UR124

Manufacturer:

National Semiconductor

File Size:

0.96 MB

Description:

Dc-balanced 24-bit lvds serializer/deserializer.

Note:

This datasheet PDF includes multiple part numbers: DS90UR241, DS90UR124.
Please refer to the document for exact specifications by model.
