DS90UR241-Q1 Datasheet, Serializer/deserializer, Texas Instruments

DS90UR241-Q1 Features

  • Serializer/deserializer
  • 1 Supports Displays With 18-Bit Color Depth
  • 5-MHz to 43-MHz Pixel Clock
  • Automotive-Grade Product AEC-Q100 Grade 2 Qualified
  • 24:1 Interface Compres

PDF File Details

Part number:

DS90UR241-Q1

Manufacturer:

Texas Instruments ↗

File Size:

1.53MB

Download:

📄 Datasheet

Description:

5-mhz to 43-mhz dc-balanced 24-bit fpd-link2 serializer/deserializer. The DS90URxxx-Q1 chipset translates a 24-bit parallel bus into a fully transparent data/control FPDLink II LVDS serial stream with em

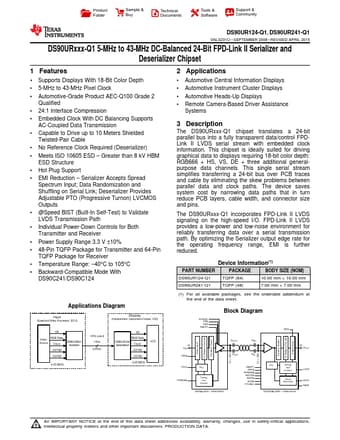

Datasheet Preview: DS90UR241-Q1 📥 Download PDF (1.53MB)
Page 2 of DS90UR241-Q1 Page 3 of DS90UR241-Q1

DS90UR241-Q1 Application

  • Applications Diagram Host (Graphics/Video Processor, ECU) Display (Infotainment, Instrument Cluster, CID) DE RGB Data Video Source Clock HSYNC
