DS90UR908Q

5 - 65 MHz 24-bit Color FPD-Link II to FPD-Link Converter

National Semiconductor

DS90UR908Q Features

* 5

* 65 MHz support (140 Mbps to 1.82 Gbps Serial Link) 5-channel (4 data + 1 clock) FPD-Link driver outputs AC Coupled STP Interconnect up to 10 meters in length Integrated input termination

DS90UR908Q General Description

The DS90UR908Q converts FPD-Link II to FPD Link. It translates a high-speed serialized interface with an embedded clock over a single pair (FPD-Link II) to four LVDS data/control streams and one LVDS clock pair (FPD-Link). This serial bus scheme greatly eases system design by eliminating skew proble.

DS90UR908Q Datasheet (683.04 KB)

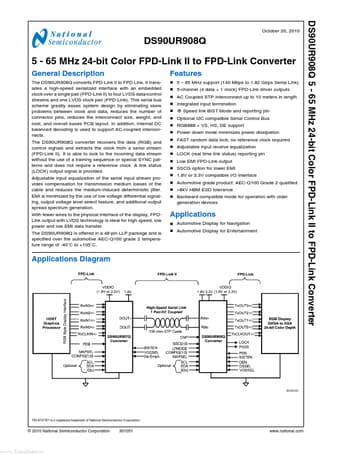

DS90UR908Q Datasheet Preview — Preview of DS90UR908Q PDF

Datasheet Details

Part number:

DS90UR908Q

Manufacturer:

National Semiconductor

File Size:

683.04 KB

Description:

5 - 65 mhz 24-bit color fpd-link ii to fpd-link converter.
DS90UR908Q 5 - 65 MHz 24-bit Color FPD-Link II to FPD-Link Converter October 20, 2010 DS90UR908Q 5 - 65 MHz 24-bit Color FPD-Link II to FPD-Link Con.
