DS92CK16

3V BLVDS 1 to 6 Clock Buffer/Bus Transceiver

DS92CK16 Features

* Master/Slave clock selection in a backplane application 125 MHz operation (typical) 100 ps duty cycle distortion (typical) 50 ps channel to channel skew (typical) 3.3V power supply design Glitch-free power on at CLKI/O pins Low Power design (20 mA @ 3.3V static) Accepts small swing (300 mV typical)

DS92CK16 General Description

The DS92CK16 1 to 6 Clock Buffer/Bus Transceiver is a one to six CMOS differential clock distribution device utilizing Bus Low Voltage Differential Signaling (BLVDS) technology. This clock distribution device is designed for applications requiring ultra low power dissipation, low noise, and high dat.

DS92CK16 Datasheet (165.48 KB)

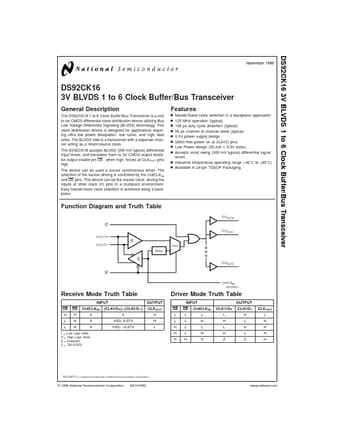

Preview of DS92CK16 PDF

Datasheet Details

Part number:

DS92CK16

Manufacturer:

National Semiconductor

File Size:

165.48 KB

Description:

3v blvds 1 to 6 clock buffer/bus transceiver.
