DS92LV222A Two Channel Bus LVDS MUXed Repeater

The DS92LV222A is a repeater designed specifically for the bridging of multiple backplanes in a rack. The DS92LV222A utilizes low voltage differential signaling to deliver high speed while consuming minimal power with reduced EMI. The RSEL pin and DE pins allow maximum flexibility as to which receiv.

DS92LV222A Features

* a flow through pin out which allows easy PCB routing for short stubs between its pins and the connector. The driver is selectable between 3.5 mA (100Ω load) and 8.5 mA (27Ω load) output loop currents depending upon the level applied to the ISEL pin. This allows for single termination (point-to-point

DS92LV222A_NationalSemiconductor.pdf

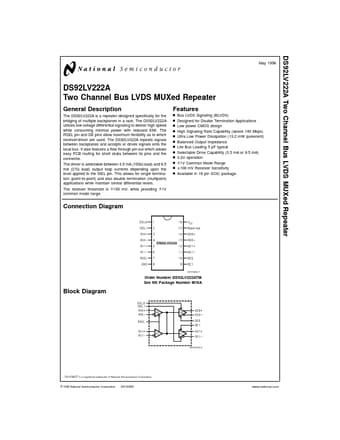

DS92LV222A Datasheet Preview — Preview of DS92LV222A PDF

Datasheet Details

Part number:

DS92LV222A

Manufacturer:

National Semiconductor

File Size:

120.43 KB

Description:

Two channel bus lvds muxed repeater.
