LM20 2.4V/ 10A/ SC70/ micro SMD Temperature Sensor

LM20 Features

* n n n n Rated for full

* 55˚C to +130˚C range Available in an SC70 and a micro SMD package Predictable curvature error Suitable for remote applications Key Specifications n Accuracy at +30˚C n Accuracy at +130˚C &

* 55˚C n Power Supply Voltage Range n Current Drain n Nonlinearity n Ou

LM20 General Description

The LM20 is a precision analog output CMOS integrated-circuit temperature sensor that operates over a *55˚C to +130˚C temperature range. The power supply operating range is +2.4 V to +5.5 V. The transfer function of LM20 is predominately linear, yet has a slight predictable parabolic curvatu.

LM20 Datasheet (218.15 KB)

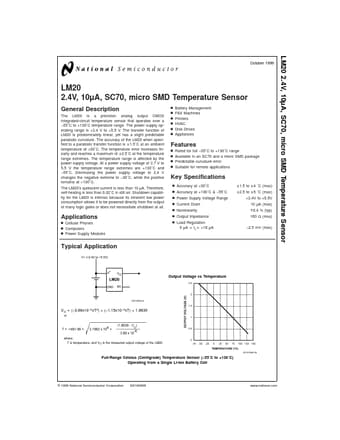

LM20 Datasheet Preview — Preview of LM20 PDF

Datasheet Details

Part number:

LM20

Manufacturer:

National Semiconductor

File Size:

218.15 KB

Description:

Lm20 2.4v/ 10a/ sc70/ micro smd temperature sensor.
