LM2501

Mobile Pixel Link (MPL) Camera Interface Serializer/Deserializer

National Semiconductor

LM2501 Features

* n n n n n 160 Mbps Raw Throughput MPL-0 Meets MPL Physical Layer Specification Configurable as a Serializer or Deserializer Complete LVCMOS to MPL Translation Serializes 8-bit Camera Interface

* 8-bit color data

* plus VSYNC and HSYNC bits Link power down mode reduces quiescent power

LM2501 General Description

The LM2501 device is a Serializer/Deserializer that adapts existing video busses to Mobile Pixel Link (MPL). MPL is intended to replace wide LVCMOS video interfaces inside portable electronics equipment benefiting their cost, size, EMI and power consumption. By using the LM2501 SERDES chipset, the i.

LM2501 Datasheet (302.66 KB)

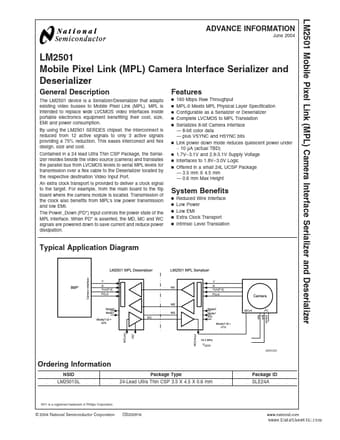

LM2501 Datasheet Preview — Preview of LM2501 PDF

Datasheet Details

Part number:

LM2501

Manufacturer:

National Semiconductor

File Size:

302.66 KB

Description:

Mobile pixel link (mpl) camera interface serializer/deserializer.
LM2501 Mobile Pixel Link (MPL) Camera Interface Serializer and Deserializer ADVANCE INFORMATION June 2004 LM2501 Mobile Pixel Link (MPL) Camera Inte.
