LM25010SD, LM25010 1-A Step-Down Switching Regulator

Texas Instruments

Description

Product Folder Sample & Buy Technical Documents Tools & Software Support & Community LM25010, LM25010-Q1 SNVS419E * DECEMBER 2005 The LM25010 features all the functions needed to implement a low-cost, efficient, buck regulator capable of supplying in excess of 1-A load current.

📥 Download Datasheet

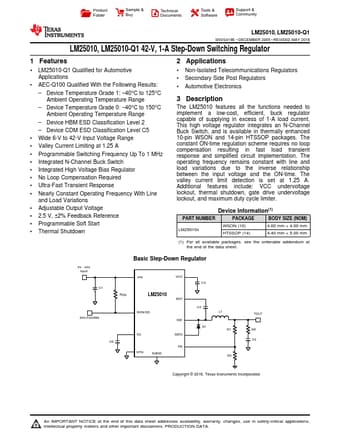

LM25010SD Datasheet Preview — This datasheet PDF includes multiple part numbers: LM25010SD, LM25010. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: LM25010SD, LM25010
Manufacturer: Texas Instruments ↗
File Size: 1.25 MB
Datasheet: LM25010-etcTI.pdf
Description: 1-A Step-Down Switching Regulator
Note: This datasheet PDF includes multiple part numbers: LM25010SD, LM25010.
Please refer to the document for exact specifications by model.

Applications

* AEC-Q100 Qualified With the Following Results:
* Device Temperature Grade 1:
* 40°C to 125°C Ambient Operating Temperature Range
* Device Temperature Grade 0:
* 40°C to 150°C Ambient Operating Temperature Range
* Device HBM ESD Classification Level 2
