LM250 - ADJUSTABLE VOLTAGE REGULATORS

LM250 Description

LM150/250 LM350 THREE-TERMINAL 3 A ADJUSTABLE VOLTAGE REGULATORS *..GUARANTEED 3A OUTPUT CURRENT ADJUSTABLE OUTPUT DOWN TO 1.2V LINE REGUL.

LM250 Applications

* + 1.2V to + 25V ADJUSTABLE REGULATOR LM350 Since the 50µA current from the adjustment terminal represents an error term, the LM350 was designed to minimize Iadj and make it very constant with line and load changes. To do this, all quiescent operating current is returned to the output establishing a

📥 Download Datasheet

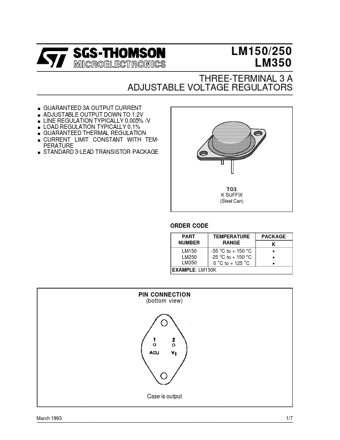

Preview of LM250 PDF
datasheet Preview Page 2 datasheet Preview Page 3
