LM25005MH, LM25005 - 2.5A Step-Down Switching Regulator

LM25005MH Description

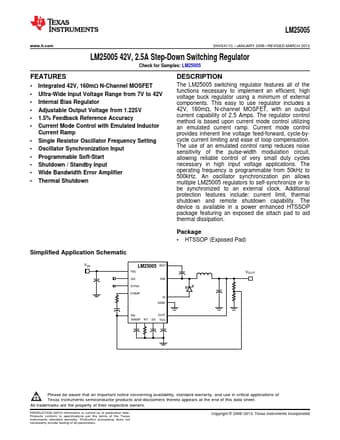

LM25005 www.ti.com SNVS411C * JANUARY 2006 * REVISED MARCH 2013 LM25005 42V, 2.5A Step-Down Switching Regulator Check for Samples: .
The LM25005 switching regulator features all of the functions necessary to implement an efficient, high voltage buck regulator using a minimum of exte.

LM25005MH Features

* 1
* 2 Integrated 42V, 160mΩ N-Channel MOSFET
* Ultra-Wide Input Voltage Range from 7V to 42V
* Internal Bias Regulator
* Adjustable Output Voltage from 1.225V
* 1.5% Feedback Reference Accuracy
* Current Mode Control with Emulated Inductor Current Ramp

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: LM25005MH, LM25005. Please refer to the document for exact specifications by model.
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
LM25005MH, LM25005
Manufacturer
Texas Instruments ↗
File Size
1.03 MB
Datasheet
LM25005-etcTI.pdf
Description
2.5A Step-Down Switching Regulator
Note
This datasheet PDF includes multiple part numbers: LM25005MH, LM25005.
Please refer to the document for exact specifications by model.
